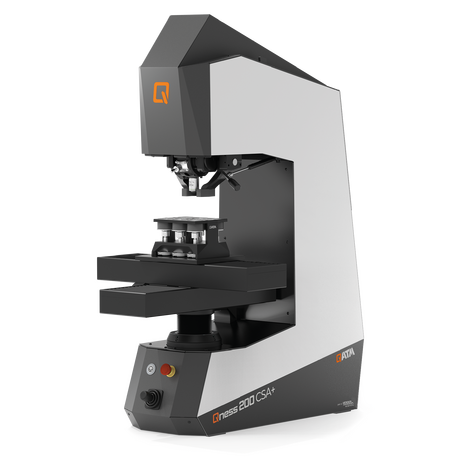

宏观硬度计 Qness 200 CSA+ 技术参数
| Test force range | 0.5 - 187.5 kg (4.9 - 1839 N) |
|---|---|
| Tool positions | 5 (toolchanger) |
| Software | QPIX CONTROL 2 |
| Height adjustment | motorized |
| Test height | 140 mm |
| Throat depth | 238 mm |
| Test table | 180 x 200 mm |
| Traverse path | X 220 / Y 220 mm |
| Max. workpiece weight | "unlimited" |
| Weight of basic device | 174 kg |
| Test sequence | fully automated / electronic force application |
| Camera system / Image transfer | 5 MP ethernet industrial standard |
| Ports | 1x RJ45 (Ethernet) |
| Lenses | XLED 2, XLED 5, 5x, 10x, 20x, 50x, 100x |
| Field of view (acc. to equip) | 0.113 x 0.084 mm (100x) to 4.24 x 3.18 mm (XLED2) |
| Additional options | QATM designer pedestal, collision protection, cross laser, test anvils,prisms, data connections, barcode/QR code reader etc. |
宏观硬度计 Qness 200 CSA+ 资料下载
Product data sheet Qness 200 CSA
Hardness testing on Ceramics
Next to applications on steel and non-ferrous metals hardness testing on ceramic materials is an interesting and challenging application for any hardness tester. High hardness values and low fracture toughness are typical characteristics of technical ceramics. With advanced optic system quality and unique universality QNESS hardness testers can make daily hardness testing on ceramics a lot easier for the operator.
