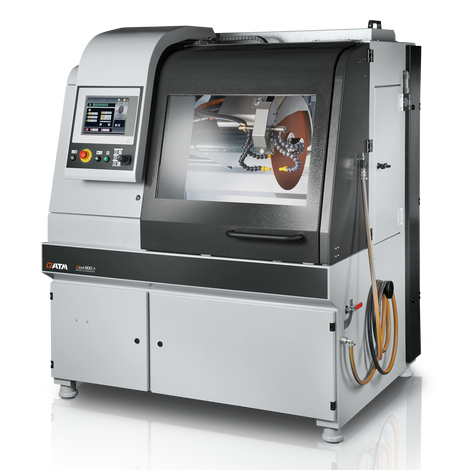

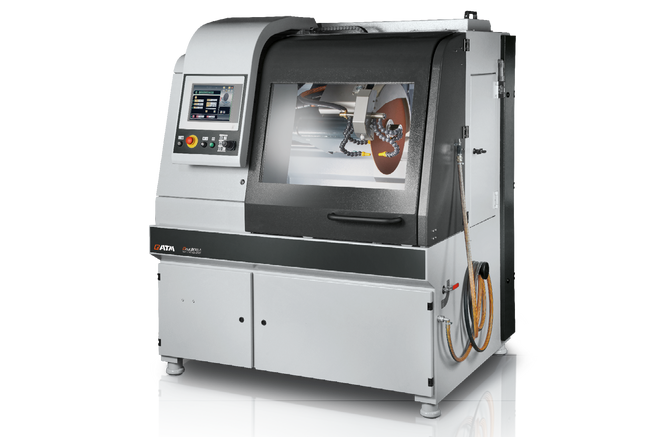

The Qcut 600 A represents the flagship of QATM’s cut-off machine series, delivering maximum cutting capacity for large and heavy workpieces. Its automatic travel and cross-feed functions enable precise, low-contact cutting while setting new standards in workspace efficiency, operational flexibility, and process automation.

Product Advantages

Maximum cutting capacity: Samples with a diameter of up to 244 mm can be easily cut
Industrial applications: Even the heaviest samples can be placed on the heavy-duty machine table using a forklift or crane
Multi-Position Process (MPP): Simultaneous positioning and automatic cutting of different components on the machine table

Cut-off machine] Qcut 600 A Superiority in detail

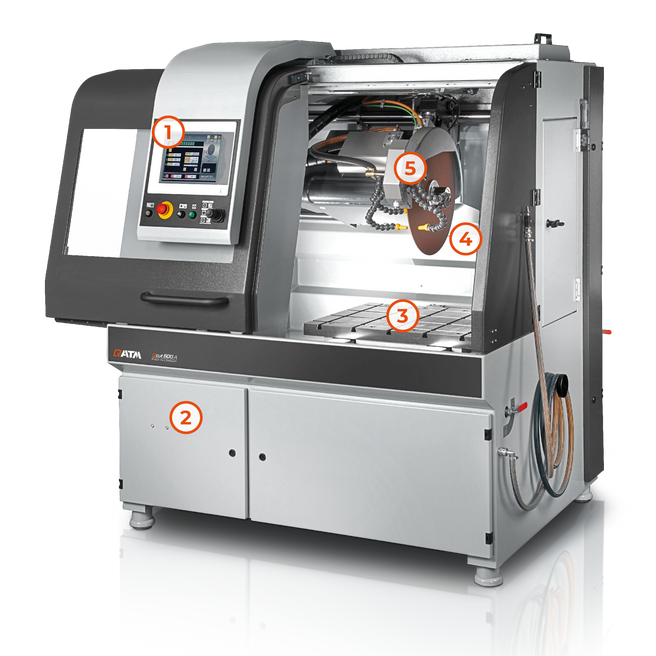

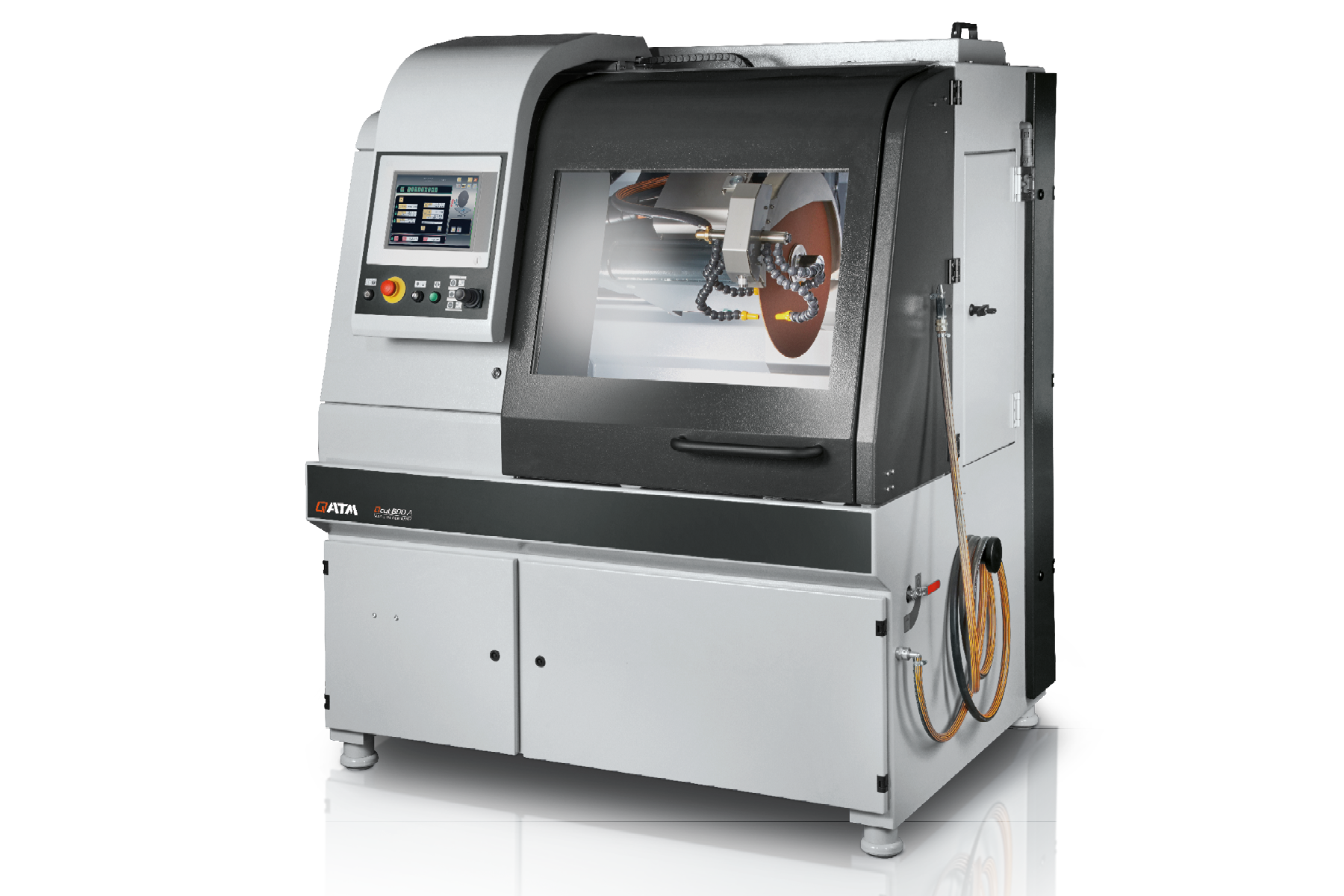

1. Ergonomic control panel

Large 12.1" industrial touchscreen with intuitive QATM software
Quick setup, control of all automatic axes with joystick
The sliding control panel enables unobstructed working conditions

2. Robust machine body

Sturdy powder-coated steel construction
Integrable recirculating cooling unit
Automatic central lubrication of the axes

3. Large machine table

Made of stainless steel with integrated longitudinal and cross T-slots
Secure clamping of complex workpiece shapes using the T-slot table or Easy clamping system
{{LL::general.dimensions] 750 x 600 {{LL::weblab.cform1.milimeter] (W x D)
Load capacity: up to 400 kg
{{LL::general.technical.data.travel] X: 550 {{LL::weblab.cform1.milimeter], Y: 360 {{LL::weblab.cform1.milimeter], Z: 550 mm

4. Large cutting chamber

Large sliding door provides easy access and visibility
Side swing door for convenient access to cutting chamber
Large side door for easy cut-off wheel replacement
Break-resistant LED interior lighting

5. Optimized swivel arm

Highly efficient cooling system
Increased cutting capacity thanks to parallel guided cut-off wheel guard
Laser alignment aid for easy workpiece positioning
Water-cooled main drive with 15 kW drive power

Cut-off machine Qcut 600 A Features

Stainless steel machine table

Spacious machine table enables precise work even under heavy loads.
Integrated T-slots for the Easy clamping system for quick mounting of clamping tools
Efficient and reliable fixation of complex geometries using clamping devices
Load capacity up to 120 kg (including clamping devices)

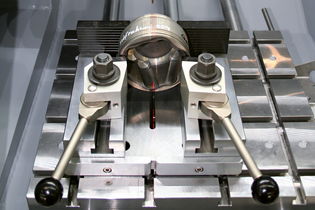

Laser alignment

Optional laser alignment projects the cutting line directly onto the workpiece, enabling precise positioning and exact cut placement.
Easy positioning of workpieces
Precise clamping without much effort

Robust machine with large cutting chamber

Robust, powder-coated steel machine body features a large sliding door with scratch-resistant laminated safety glass and convenient side access door.
Machine body with integrable recirculating cooling unit and automatic central lubrication
Large cutting chamber access with safety interlock — doors open only when cut-off wheel is stationary

Precision cross feed

The table-integrated Z-axis maintains consistent cutting height while the automatic cross feed with serial cutting function delivers precise parallel cuts.
Simple and intuitive serial cutting
The multi-position process (MPP) allows more complex serial cutting to be carried out

Rotation tool

The optional rotation tool features a vertical rotary feed parallel to the wheel with software-controlled angle input.
More uniform cutting surfaces and cutting quality
Cutting time is halved for rotationally symmetrical parts
Protects against cut-off wheel run-out

Intuitive and easy operation

Large 12.1” industrial touchscreen with intuitive QATM user software and joystick.

Easily manage process parameters and create customer-specific maintenance tasks (200 user programs can be saved)
Parameters such as feed rate, travel distance, and cutting force can be changed during automatic operation

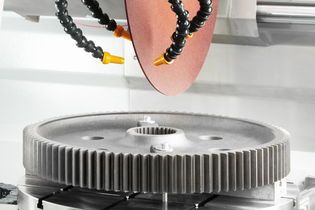

Pulsed cutting

For thick and difficult-to-cut materials, the adjustable automatic pulsed cutting provides gentle sectioning with optimal cooling of the cut interface.
Enhanced cutting results for larger components
Superior cooling of contact surfaces

Cutting force dependent feed control (X- and Y-Axis)

The feed rate automatically decreases when cutting force reaches a preset limit, protecting the machine, sample, and clamping tools from overloading.

Time savings thanks to variable feed rate

Cut-off machine Qcut 600 A Accessories

Recirculation cooling unit

Compact, integrable cooling system for standard applications.
Can be integrated into the housing and extended
Multi-chamber filtration
Inlet sieve with filter bag (see consumables)

Belt filter system

Large cooling and filter system for continuous operation, e.g. in serial applications.
Tank size: 285 l
Filtering capacity: 100 l/min (referring emulsion)
Pump capacity: 100 l/min

Centrifugal Separator

Work safety: Working environment with improved air quality.
Removes coolant mist
Purifies the air and increases visibility
Exhaust power 452 or 500 m3/h depending on voltage

Perfect cutting - Cut-off wheels from QATM

Cutting is more reliable, safe and efficient when processed with the right ingredients: knowledge, care and the right choice of consumables and instruments.

To the product range

Fast, Powerful, Flexible - Qtool Clamping devices

Our innovative clamping devices are used to clamp workpieces securely and precisely to ensure exact cutting and grinding processes. There is a wide range of different clamping devices that have been developed for specific applications and workpiece sizes.

To the product range

Cut-off machine Qcut 600 A Technical Data

Cutting wheel	up to ø 600 mm/24"
Max. cutting capacity	ø 244 mm
Max. way of cutting wheel into sample	190 mm (cutting wheel ø 500 mm)
Wheel flange size	ø 32/40 mm
X-axis automatic	550 mm
Y-axis automatic	360 mm
Z-axis automatic	550 mm
Precision Z-axis	0.1 mm
Table WxD	750 x 600 mm, stainless
T-slot	12 mm
Speed	variable 1000-2400 rpm
Drive power (main drive)	15 kW S1
Connection power	30 kVA

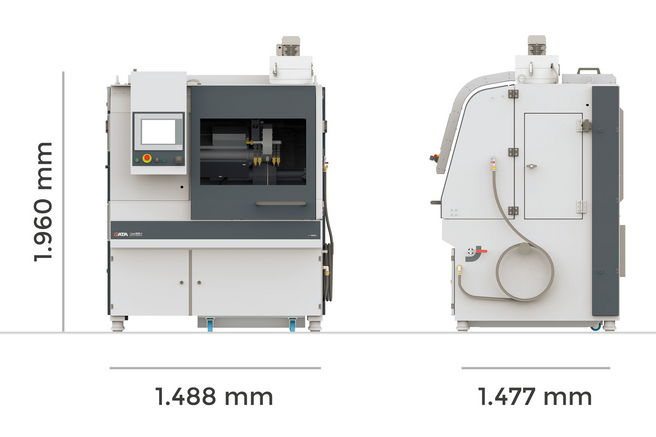

W x H x D	1488 x 1960 x 1477 mm
Weight	~ 1600 kg (depends on equipment)
