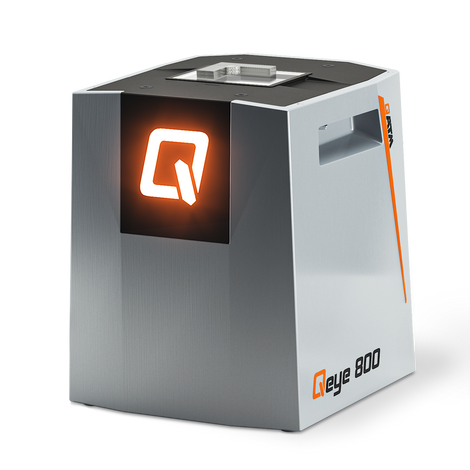

光学分析装置 - 倒置显微镜 Qeye 800 技术参数
| Zoom |
optical: 1x - 20x, digital: 30x - 35x |
| Camera |
4K Ultra HD - 8.5 megapixel - USB 3.0 |
| Illumination |
IAI - LED unit (Intelligent Area Illumination) |
| Software |
Qpix Control2 |
| Machine operation |
external PC system (Windows 11 64-bit) |
| Dimensions glass sample carrierr (L x W x H) |
95 x 75 x 2 mm (3.7 x 3.0 x 0.08“) |
| Max. sample weight |
5 kg (11 lbs) |
| Interface |
1 x USB 3.0 |
| Power connection |
100 - 240 V ~1/N/PE, 50 - 60 Hz |
| Power Consumption |
Idle: ~35 W | Operation: ~60W | Max. ~100 W |
| Dimensions |
220 x 220 x 260/365* mm (8.7 x 8.7 x 10.2/14.3“) *inkl. Qeye cover |
| Space requirement |
300 x 300 mm (11.8 x 11.8“) |
| Weight |
16 kg (35.3 lbs) |
| Ambient temperature |
18 - 28 °C (64 - 82 °F) |
| Humidity maximum |
maximum 70 % - non-condensing |
光学分析装置 - 倒置显微镜 Qeye 800 资料下载
Qeye 200 / 800
