Qcut 150 A - это универсальный прецизионный отрезной станок, который используется с отрезными кругами диаметром до 203 мм / 8 дюймов.
The compact benchtop model performs automatic as well as manual cuts with the ergonomic lever. The optional sample holder arm with built-in force sensor ensures low-deformation cuts due to a precise force-controlled feed rate.
Преимущества оборудования
- До 5 различных режимов: ручной, автоматическая подача, подача с регулируемым усилием, режим шлифования, резка с приставкой стола (в зависимости от конфигурации станка)
- Ручная поперечная подача
- Функция зонной резки
- Доступны 4 различных системы охлаждения
- Устройство очистки и заточки диска
- Интуитивное программное обеспечение QATM со встроенной базой данных
Этот прибор идеально подходит для геологии и минералогии.
Прецизионный отрезной станок Qcut 150 A Особенности
Резка с контролем усилия
- Integrated force sensor in the sample holder arm precisely regulates the feed rate via the set cutting force
- Constant cutting force throughout the process for clean cutting even of edge-hardened components and composite materials
Стол-приставка
- Table attachment can be mounted without tools
- Quick and manual sectioning of large samples, PCBs, or plate material
НОВИНКА: Зонная резка
- Individual adjustment of feed rate or cutting force for single sections of the sample
- Reduced material deformation and heating
- Accelerated cutting process
All parameters at a glance
- Robust 4.3" industrial touchscreen
- Intuitive software with modern interface displaying all important cutting parameters
- Extensive program storage and user account control
Режим шлифования
- Target preparation: In grinding mode, samples can be ground manually or semi-automatically using a cup wheel
- Ideal for thin sections and microelectronics
Vacuum clamping unit
- Glass slides for thin sections can be fixed easily and without slipping
Reduces subsequent grinding processes
The use of the adaptive rotation axis leads to an even more uniform cutting pattern and reduces the risk of the cut-off wheel runout. This reduces the effort required for later plane-parallel grinding of the sample.
Прецизионный отрезной станок Qcut 150 A Superiority in detail
1. Sample holder arm
- Tool-free quick-clamping system for mounting :
- Precision clamping devices
- Rotation device
- Vacuum clamping unit
- Max. sample size: Ø 40 mm
2. Y-axis
- Manual or automatic feed
- Travel: 120 mm
- Feed rate: 0.01–20 mm/s (automatic)
- Cutting force variably adjustable: 0–10 N (optional)
3. Dressing device
- For sharpening diamond cutting and grinding wheels
- Can be operated manually from the outside
4. Robust machine body
- Sturdy and corrosion-resistant stainless steel housing
- Powder-coated, for easier cleaning
5. Transparent hood
- Swivel hood with free access to the cutting chamber
- Integrated safety switch
6. Z-axis
- Manual cross feed
- Travel: 25 mm
- Position shown on the display
- Positioning accuracy: 0.005 mm
7. Cut-off Wheel drive
- Cut-off wheel size: Ø 75–203 mm / 8"
- Drive power: 0.37 kW (S1)
8. Ergonomic Control panel
- 4.3" industrial touchscreen
- Intuitive interface displaying process data
- Storage of up to 200 user-defined cutting methods
- User account management
Большой выбор зажимов и тисков
With the help of a suitable clamping tool from the extensive range of accessories, mounted or non-mounted samples up to a size of Ø 40 mm can be clamped in the cut-off machine comfortably
Optimal accessories for Qcut 150 A and 200 A Cooling Systems
Optimal cooling is essential during sectioning. Excessive heat generation during the sectioning process damages the specimen and increases the wear of the cut-off wheel. The cooling and corrosion protection agent dissipates the heat and simultaneously removes the chips from the cut-off chamber.
15L Recirculation cooling system
- Portable system with filter cartridge and lid
- Small footprint required
- Easy to integrate into existing laboratory furniture
- Two-chamber system for filtration
45L Recirculation cooling system (Mobile)
- Mobile unit with inlet strainer, filter bag and overflow
- Can be placed under a lab bench or floor-to-ceiling cabinet
- Expandable with optional pump module for cut-off chamber flushing
- Two-chamber system for filtration with removable separating slide
45L Recirculation cooling system (System lab)
- Mobile unit with retractable mechanism
- Can be conveniently integrated into QATM system laboratory cabinets and cabinets with undershelves
- Expandable with optional pump module for cut-off chamber flushing
- Inlet strainer, filter bag and overflow
- Two-chamber system for filtration with removable separating slide
Cut-off wheel immersion cooling
- Equipment to seal and fill cutting chamber with coolant
- Incl. drain hose and shut-off valve for easy emptying
- Sample collector
Прецизионный отрезной станок Qcut 150 A Характеристики
| Cut-off wheel | ø 75 - 203 mm/8" |
|---|---|
| Variable speed | 150 - 3000 rpm |
| Max. cutting capacity: | ø 40 mm |
| Arbour size | ø 12.7 mm |
| Variable adjustable cutting force | 0 - 10 N |
| Feed | 0,01 - 20 mm/s (automatic) |
| Y-axis (vertical movement) | 120 mm (manual /automatic) |
| Z-axis manual (parallel cut) | 25 mm (manual) |
| Motor power | 0.37 kW (S1) |
| Connection power | 0.75 kVA |
| W x H x D | 545 x 391 x 566 mm |
| Weight | ~ 45 kg (depends on equipment) |

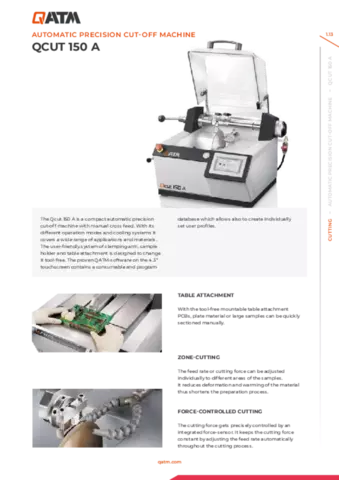

Qcut 150 A (Brillant 210 A) Скачать
